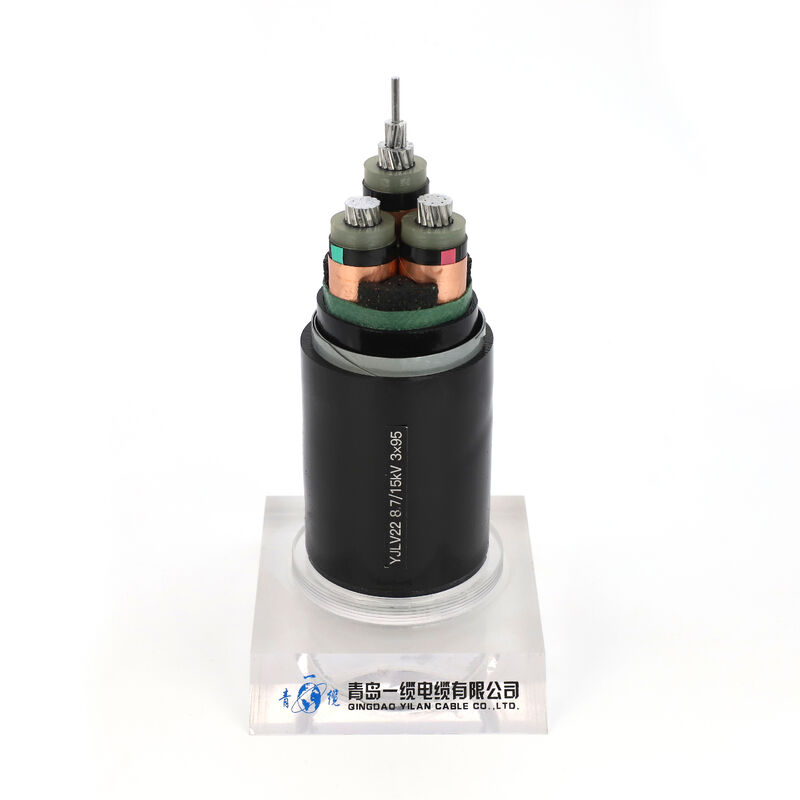

Aluminum Armoured Cable 0.6/1KV Underground YJLV22 XLPE Insulated Steel Tape Armoured Power Cable

MOQ:	1000 metros
preço:	US$0.25-105 per Meter
Embalagem padrão:	Cilindros de madeira
Período de entrega:	7-10 dias
Método de pagamento:	T / T, L / C
Capacidade de abastecimento:	10.000 quilômetros pelo mês

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

QINGDAO YICABLE CABLE

Certificação

ISO,CE,IEC,TUV,KEMA

Nome modelo:

Cabo blindado de alumínio

Tensão nominal:

0.6/1kV

Isolamento:

XLPE

condutor:

Alumínio

armadura:

Fita de aço

Tamanhos:

1~ 630mm2

Núcleos:

Multicore

Material da bainha:

PVC

Normas:

IEC/BS/É/VDE

Garantia:

2 anos

Destacar:

armored electrical wire

armored cable wiring

Descrição do produto

Armoured Aluminum Cable 0.6/1KV Underground YJLV22 XLPE Insulated Steel Tape Armoured Power Cable

Standards

IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

Rated Voltage(kV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

Construction

Conductor	Copper Conductor as per IEC 60228
	Circular or Shaped conductor
	Flexible conductor(class 5) optional
Insulation	PVC(polyvinyl chloride) rated at 75℃,many color optional
Metallic Screen optional	Copper tape or copper wires braiding optional
Armored	Steel wire
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.

1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.

2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.

3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]

4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)

Technique property:

1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

Note:

1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.

Aluminum Armoured Cable 0.6/1KV Underground YJLV22 XLPE Insulated Steel Tape Armoured Power Cable 0

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

AFTER-SERVICE COMMITMENT

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.
