Medium Voltage Armoured Electrical Cable , Three Cores Armoured Power Cable

MOQ:	300 medidores
preço:	US$0.51- US$125 / Meter
Embalagem padrão:	Cilindros de madeira
Período de entrega:	7-15 dias
Método de pagamento:	T / T, L / C
Capacidade de abastecimento:	25.000 KMs pelo mês

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

QINGDAO YICABLE CABLE

Certificação

ISO,CE,IEC,TUV,KEMA

Nome do produto:

Cabo da armadura de 3 núcleos

Isolamento:

XLPE

armadura:

fio de aço

condutor:

Cobre

Bainha:

PVC, PE, LSOH

padrão:

O IEC, BS, É, VDE

Garantia:

2 anos

Escudo:

fita de cobre

OEM:

Disponível

Destacar:

armored electrical wire

armoured power cable

Descrição do produto

Medium Voltage Three Cores CU/XLPE/CTS/STA/PVC Armoured Power Cable

Application:
Medium Voltage XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

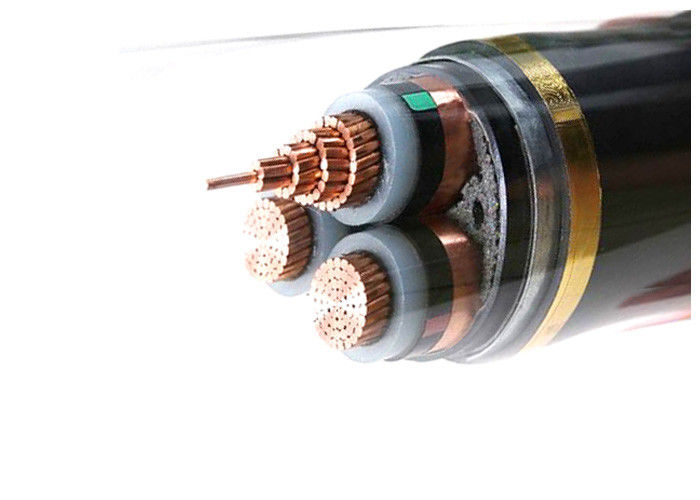

Construction

1 ..... Stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Stainless Steel Wire Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

3.6/6(7.2)kV, 3.8/6.6(7.2)kV, 6/10(12)kV,6.35/11(12)kV, 8.7/10(15)kV,8.7/15(17.5)kV, 12/20(22)kV,12.7/22(24)kV, 12.7/22(24)kV,18/30(36)kV, 19/33(36)kV XLPE Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
	Aluminum	Copper	XLPE	SW	ST	DST	AW	PVC	PE
Cu/XLPE/PVC		P	P	---	---	---	---	P
Cu/ XLPE /PE		P	P	---	---	---	---		P
Al/ XLPE /PVC	P		P	---	---	---	---	P
Al/ XLPE /PE	P		P	---	---	---	---		P
Cu/ XLPE /STA/PVC		P	P	---	P	---	---	P
Cu/ XLPE /STA/PE		P	P	---	P	---	---		P
Al/ XLPE /STA/PVC	P		P	---	P	---	---	P
Al/ XLPE /STA/PE	P		P	---	P	---	---		P
Cu/ XLPE /DSTA/PVC		P	P	---	---	P	---	P
Cu/ XLPE /DSTA/PE		P	P	---	---	P	---		P
Al/ XLPE /DSTA/PVC	P		P	---	---	P	---	P
Al/ XLPE /DSTA/PE	P		P	---	---	P	---		P
Cu/ XLPE /SWA/PVC		P	P	P	---	---	---	P
Cu/ XLPE /SWA/PE		P	P	P	---	---	---		P
Al/PVC/SWA/PVC	P		P	P	---	---	---	P
Al/PVC/SWA/PE	P		P	P	---	---	---		P
Cu/PVC/AWA/PVC		P	P	---	---	---	P	P
Cu/PVC/AWA/PE		P	P	---	---	---	P		P
Al/PVC/AWA/PVC	P		P	---	---	---	P	P
Al/PVC/AWA/PE	P		P	---	---	---	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +90°C
	fixed		-20°C till +90°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 50265-2-1

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
