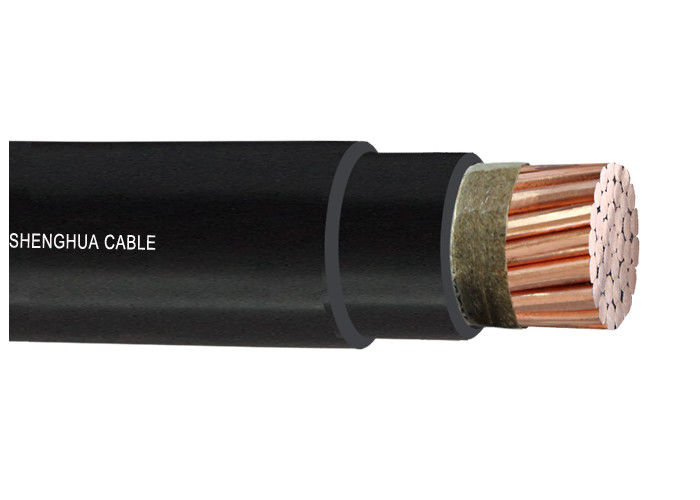

Copper conductor Fire Resistant Cable Mica-tape for translate electric

Copper conductor With Mica-tape Fire Resistant Cable Using for translate the electric​

Standards: BS 7846; IEC 60331; BS 6387

Construction: Cu/Mica/XLPE/LSZH/SWA/LSZH

(1) Conductor: Plain annealed copper (class 2, normal
stranded or compact stranded)

(2) Fire barrier: Mica tape

(3) Insulation: XLPE

(4) Filler, binder and inner covering: PP, PET, LSZH

(5) Armour: Steel wire

(6) Outer sheath: LSZH

Cable identification

- Cores: Red, yellow, blue, black, green/yellow (by color tape, except green-yellow core)

- Outer sheath: orange or as order

Characteristics

- Voltage rate: 0.6/1kV

- Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.

- Minimum bend radius: 12xD (twelve times overall diamerter of cable)

- Fire resistant: IEC 60331; BS 6387

- Flame retardant: BS EN 60332-1; IEC 60332-1

- Corrosive and acid gas: BS 7846; BS 50267-2-1; IEC 60754-1&2

Smoke emission: BS 7846; BS EN 50268-2; IEC 61034-2

Notes: * All conductor in accordance with IEC 60228. Compacted conductor (C.C) or non-compacted depend on order.

• Besides the above mentioned list we can also provide other sizes depending on customer’s requirement.
