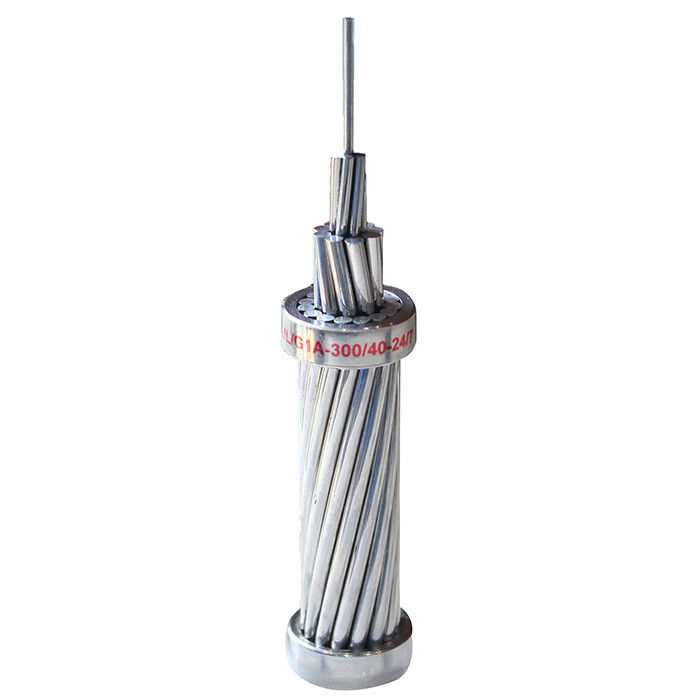

Dog / Rabbit Bare Aluminium Conductor Of Electricity , 132KV Transmission Conductor

MOQ:	0.5KM
preço:	0.10-10.99USD/m
Embalagem padrão:	Cilindro de madeira ou cilindro de aço
Período de entrega:	conforme a exigência
Método de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidade de abastecimento:	1000KM POR o MÊS

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

QINGDAO YICABLE CABLE

Certificação

ASTM A475, BS 183:1972

Tamanho:

10-800mm2

Aplicação:

estação de energia

Tipo:

Alta tensão

padrão:

BS, ASTM, IEC

certificado:

ISO9001/ISO14001

Garantia:

12 Meses

Tensão nominal:

132kV

Destacar:

aaac conductor

all aluminium alloy conductor

Descrição do produto

Dog / Rabbit Bare Aluminium Conductor Of Electricity , 132KV Transmission Conductor

Constructure:

Aluminum alloy wires, concentrically stranded with steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.

Application:

Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Standards:

All the products can perfectly meet requests of different standards. we can design and manufacture special cables according to the required standards of customers, such as: GB, IEC, BS, ASTM, JIS, DIN CRS.

Type	Description	No. of Wire	Section Area (mm2)
AAC	All Aluminum Conductor	7~127	16~1500
AAAC	All Aluminum Alloy Conductor	7~91	17~1300
ACSR	Aluminum Conductors Steel Reinforced	7~103	16~1250
AACSR	Aluminum Alloy Conductors Steel Reinforced	7~103	16~1250
ACAR/AW	Aluminum Conductors Aluminum Alloy Reinforced	7~103	16~1250
ACSW/S	Aluminum Conductors Aluminum Clad Steel Wire/Strand	7~103	16~1250
GSW	Galvanized Steel Wire	3/2.64~37/4.55	16.41~765.99

ACSR Conductor technical data

BS215 PART2
Code	Cross			No.of wires		Wire daimeter		Diameter		Mass per	Rated	Maximum
name	section					Wire daimeter		Diameter		unit length	strength	DC resistance
	Al	Steel	Total			Al	Steel	Core	Cond.			at 20°C
	mm2	mm2	mm2	Al	Steel	mm	mm	mm	mm	kg/km	kN	ohm/km
MOLE	10.6	1.77	12.4	6	1	1.5	1.5	1.5	4.5	42.8	4.14	2.7027
SQUIRREL	21	3.5	24.5	6	1	2.11	2.11	2.11	6.33	84.7	7.87	1.3659
GOPHEL	26.2	4.37	30.6	6	1	2.36	2.36	2.36	7.08	106	9.58	1.0919
WEASEL	31.6	5.27	36.9	6	1	2.59	2.59	2.59	7.77	127.6	11.38	0.9065
FOX	36.7	6.11	42.8	6	1	2.79	2.79	2.79	8.37	148.1	13.21	0.7812
FERRET	42.4	7.07	49.5	6	1	3	3	3	9	171.2	15.27	0.6757
RABBIT	52.9	8.81	61.7	6	1	3.35	3.35	3.35	10.1	213.5	18.42	0.5419
MINIK	63.1	10.5	73.6	6	1	3.66	3.66	3.66	11	254.9	21.67	0.454
SKUNK	63.2	36.9	100.1	12	7	2.59	2.59	7.77	13	463	52.79	0.4568
BEAVER	75	12.5	87.5	6	1	3.99	3.99	3.99	12	302.9	25.76	0.382
HORSE	73.4	42.8	116.2	12	7	2.79	2.79	8.37	14	537.3	61.26	0.3936
RACOON	78.8	13.1	92	6	1	4.09	4.09	4.09	12.3	318.3	27.06	0.3635
OTTER	83.9	14	97.9	6	1	4.22	4.22	4.22	12.7	338.8	28.81	0.3415
CAT	95.4	15.9	111.3	6	1	4.5	4.5	4.5	13.5	385.3	32.76	0.3003
HARE	105	17.5	122.5	6	1	4.72	4.72	4.72	14.2	423.8	36.04	0.273
DOG	105	13.6	118.5	6	7	4.72	1.57	4.71	14.2	394	32.65	0.2733
COYOTE	131.7	20.1	151.8	26	7	2.54	1.91	5.73	15.9	520.7	45.86	0.2192
COUGAR	131.5	7.31	138.8	18	1	3.05	3.05	3.05	15.3	418.8	29.74	0.2188
TIGER	131.2	30.6	161.9	30	7	2.36	2.36	7.08	16.5	602.2	57.87	0.2202
WOLF	158.1	36.9	194.9	30	7	2.59	2.59	7.77	18.1	725.3	68.91	0.1829
DINGO	158.7	8.81	167.5	18	1	3.35	3.35	3.35	16.8	505.2	35.87	0.1814
LYNX	183.4	42.8	226.2	30	7	2.79	2.79	8.37	19.5	841.6	79.97	0.1576
CARACAL	184.2	10.2	194.5	18	1	3.61	3.61	3.61	18.1	586.7	40.74	0.1562
PANTHER	212.1	49.5	261.5	30	7	3	3	9	21	973.1	92.46	0.1363
JAGUAR	210.6	11.7	222.3	18	1	3.86	3.86	3.86	19.3	670.8	46.57	0.1366
LION	238.3	55.6	293.9	30	7	3.18	3.18	9.54	22.3	1093.4	100.47	0.1213
BEAR	264.4	61.7	326.1	30	7	3.35	3.35	10.1	23.5	1213.4	111.5	0.1093
GOAT	324.3	75.7	400	30	7	3.71	3.71	11.1	26	1488.2	135.13	0.0891
SHEEP	375.1	87.5	462.6	30	7	3.99	3.99	12	27.9	1721.3	156.3	0.0771
ANTELOPE	374.1	48.5	422.6	54	7	2.97	2.97	8.91	26.7	1413.8	118.88	0.0773
BISON	381.7	49.5	431.2	54	7	3	3	9	27	1442.5	121.3	0.0758
DEER	429.6	100.2	529.8	30	7	4.27	4.27	12.8	29.9	1971.4	179	0.0673
ZEBRA	428.9	55.6	484.5	54	7	3.18	3.18	9.54	28.6	1620.8	131.92	0.0674
ELK	477.1	111.3	588.5	30	7	4.5	4.5	13.5	31.5	2189.5	198.8	0.0606
CAMEL	476	61.7	537.7	54	7	3.35	3.35	10.1	30.2	1798.8	146.4	0.0608
MOOSE	528.5	68.5	597	54	7	3.53	3.53	10.6	31.8

E,Package:In coils, wooden drums, steel drums or steel-wooden drums.

We could producing according to the customers' requirements.Welcome your request for any quotations!
