Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines

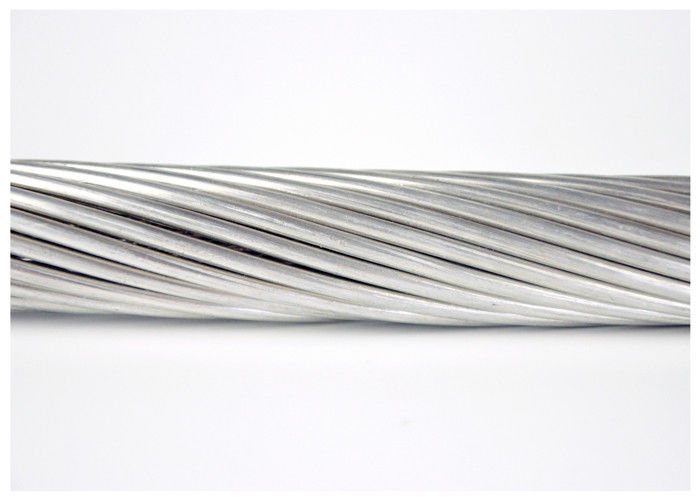

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines

Lugar de origem China
Marca QINGDAO YICABLE CABLE
Certificação EN51082
Detalhes do produto
condutor:
Alumínio (AAC)
Isolamento:
Não
Não dos fios:
7
Nome de código:
Midge
Área:
23,3 milímetros quadrados
Aplicação:
Sistema de energia aéreo
Destacar:

aaac conductor

,

acsr conductor

Payment & Shipping Terms
Quantidade de ordem mínima
0.5KM
Detalhes da embalagem
Cilindro de madeira ou cilindro de aço
Tempo de entrega
10Days ou mais
Termos de pagamento
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte
1000KM POR o MÊS
Descrição do produto

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines



1 Application of All Aluminium Bare Conductors (AAC)



The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.



Type

  Description No. of Wire

Section Area

(mm2)
AAC All Aluminum Conductor 7~127 16~1500
AAAC All Aluminum Alloy Conductor 7~91 17~1300
ACSR

Aluminum Conductors

Steel Reinforced

 7~103 16~1250
AACSR

Aluminum Alloy Conductors

Steel Reinforced

 7~103 16~1250
ACAR/AW

Aluminum Conductors

Aluminum Alloy Reinforced

 7~103 16~1250
ACSW/S

Aluminum Conductors

Aluminum Clad Steel Wire/Strand

 7~103 16~1250
GSW Galvanized Steel Wire 3/2.64~37/4.55 16.41~765.99



AAC

               EN 51082

  Area No. of Diameter   Mass per unit Rated DC
Code Name   wires Wire   Cond. length strength Resistance
  mm2   mm   mm kg/km kN Ω/km
Midge 23.3 7 2.06   6.18 63.8 4.20 1.2249
Gnat 26.9 7 2.21   6.63 73.4 4.83 1.0643
Mosquito 36.9 7 2.59   7.77 100.8 6.27 0.7749
Ladybird 42.8 7 2.79   8.37 117.0 7.28 0.6678
Ant 52.8 7 3.10   9.30 144.4 8.72 0.5409
Fly 63.6 7 3.40   10.2 173.7 10.49 0.4497
Bluebottle 73.6 7 3.66   11.0 201.3 11.78 0.3880
Earwig 78.6 7 3.78   11.3 214.7 12.57 0.3638
Grasshopper 84.1 7 3.91   11.7 229.7 13.45 0.3400
Clegg 95.6 7 4.17   12.5 261.3 15.30 0.2989
Wasp 106.0 7 4.39   13.2 289.6 16.95 0.2697
Beetle 106.4 19 2.67   13.4 292.4 18.08 0.2701
Bee 132.0 7 4.90   14.7 360.8 21.12 0.2165
Hornet 157.6 19 3.25   16.3 433.2 26.01 0.1823
Caterpillar 185.9 19 3.53   17.7 511.1 29.75 0.1546
Chafer 213.2 19 3.78   18.9 586.0 34.12 0.1348
Spider 237.6 19 3.99   20.0 652.9 38.01 0.1210
Cockroach 265.7 19 4.22   21.1 730.4 42.52 0.1081
Butterfly 322.7 19 4.65   23.3 886.8 51.63 0.0891
Moth 373.1 19 5.00   25.0 1025.3 59.69 0.0770
Drone 372.4 37 3.58   25.1 1027.1 59.59 0.0774
Centipede 415.2 37 3.78   26.5 1145.1 66.43 0.0695
Maybug 486.1 37 4.09   28.6 1340.6 77.78 0.0593
Scorpion 529.8 37 4.27   29.9 1461.2 84.77 0.0544
Cicada 628.3 37 4.65   32.6 1732.9 100.54 0.0459


Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines 0
