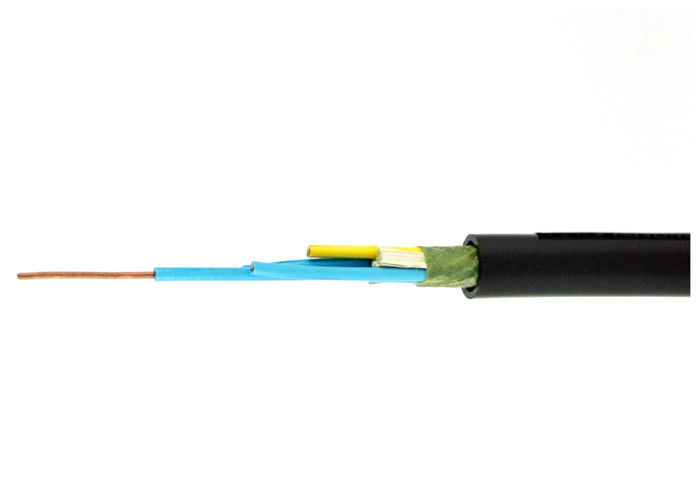

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench
  • Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench
  • Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench
  • Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Lugar de origem China
Marca QINGDAO YICABLE CABLE
Certificação CE/KEMA/CCC/TUV
Detalhes do produto
Insualtion:
PVC
Bainha:
PVC
Materiais:
Cobre
Condutor Tipo:
Class1 ou Class2
núcleos não.:
2 a 61
Tamanho:
0.75mm2 a 10mm2
Forma do condutor:
Rodada
cor:
Preto ou cinza
Destacar:

multicore flexible cable

,

multicore power cable

Payment & Shipping Terms
Quantidade de ordem mínima
1000M
Preço
USD 0.4 To 10.5 per Meter
Detalhes da embalagem
100/200 de medidor por Rolls ou cilindros de aço de madeira
Tempo de entrega
10-15 dias
Habilidade da fonte
8KM pelo dia
Descrição do produto

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench



Construction:



Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.





Specifications:



Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Overall Diameter Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
2x0.75 0.6 1.2 6.7 8.1 0.012 24.5 59
2x1 0.6 1.2 7 8.5 0.011 18.1 67
2x1.5 0.7 1.2 7.9 9.5 0.011 12.1 86
2x2.5 0.8 1.2 9 10.9 0.01 7.41 120
2x4 0.8 1.2 9.9 11.9 0.0085 4.61 167
2x6 0.8 1.2 10.8 13.1 0.007 3.08 220
3x0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3x1 0.6 1.2 7.4 8.9 0.011 18.1 82
3x1.5 0.7 1.2 8.3 10 0.011 12.1 108
3x2.5 0.8 1.2 9.5 11.5 0.01 7.41 154
3x4 0.8 1.2 10.5 12.4 0.0085 4.61 210
3x6 0.8 1.2 11.5 13.9 0.007 3.08 310
