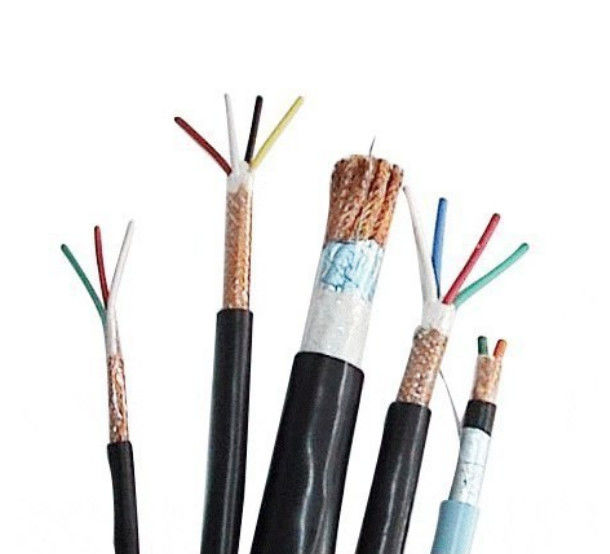

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable
  • Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable
Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable

Lugar de origem China
Marca QINGDAO YICABLE CABLE
Certificação CE/KEMA/CCC/TUV
Detalhes do produto
Essencial:
4 a 61
Armadura:
Fita de aço
Característica:
Retardador de chama
Seção transversal:
2.5 mm2 a 10 mm2
Tipo de condutor:
Classe 1 ou classe 2
Cor:
Preto
Destacar:

multicore flexible cable

,

multi core electrical cable

Termos de pagamento e envio
Quantidade de ordem mínima
1000M
Preço
USD 0.4 To 10.5 per Meter
Detalhes da embalagem
Cilindros de aço de madeira
Tempo de entrega
10-15 dias
Habilidade da fonte
8KM pelo dia
Descrição do produto

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable



Descriptions:



Conductor: Solid or Stranded Copper Conductor

Insualtion: XLPE

Inner Sheath: PVC

Armor: Steel Tape

Sheath: Flame Retardant PVC



The advantage of Flame Retardant Cable



In the event of fire, protect people's lives and property safety,reduce the losses.



Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.





Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request







Cross-Sectional
Area mm2		 Thickness of
Insulation mm		 Thickness of
Steel Tape mm		 Thickness of
Sheath mm		 Overall Diameter
mm		 Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
4x2.5 0.8 2x0.2(0.3) 1.5 13.4 16.1 0.001 7.41 450
4x4 0.8 2x0.2(0.3) 1.5 14.4 17.4 0.0085 4.61 505
4x6 0.8 2x0.2(0.3) 1.5 15.6 18.8 0.007 3.08 619
4x10 1 2x0.2(0.3) 1.7 19.4 23.5 0.0065 1.83 947
5x2.5 0.8 2x0.2(0.3) 1.5 14.3 17.2 0.001 7.41 506
5x4 0.8 2x0.2(0.3) 1.5 15.4 18.6 0.0085 4.61 586
5x6 0.8 2x0.2(0.3) 1.7 16.7 20.2 0.007 3.08 737
5x10 1 2x0.2(0.3) 1.7 21 25.4 0.0065 1.83 1125
7x0.75 0.6 2x0.2(0.3) 1.5 11.8 14.2 0.012 24.5 317
7x1.0 0.6 2x0.2(0.3) 1.5 12.2 14.7 0.011 18.1 425
7x2.5 0.7 2x0.2(0.3) 1.5 13.5 16.3 0.01 7.41 554
7x4 0.8 2x0.2(0.3) 1.5 15.2 18.4 0.0085 4.61 701
7x6 0.8 2x0.2(0.3) 1.7 18 21.7 0.007 3.08 900
7x10 1 2x0.2(0.3) 1.7 22.7 27.4 0.0065 1.83 1397
10x0.75 0.6 2x0.2(0.3) 1.5 13.8 16.7 0.012 24.5 449
10x1 0.6 2x0.2(0.3) 1.5 14.4 17.4 0.011 18.1 558
10x1.5 0.7 2x0.2(0.3) 1.5 16.1 19.5 0.011 12.1 753
10x2.5 0.8 2x0.2(0.3) 1.7 18.8 22.7 0.01 7.41 956
10x4 0.8 2x0.2(0.3) 1.7 20.5 24.8 0.0085 4.61 1203
10x6 0.8 2x0.2(0.3) 1.7 22.5 27.1 0.007 3.08 1534
