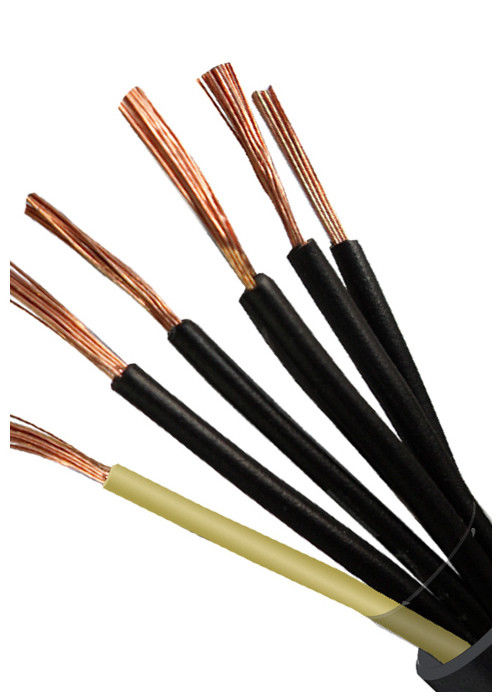

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
  • Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
  • Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
  • Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2
  • Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Lugar de origem China
Marca QINGDAO YICABLE CABLE
Certificação CE/KEMA/CCC/TUV
Detalhes do produto
Insualtion:
PVC
Bainha:
PVC
Materiais:
cobre recozido
Condutor Tipo:
flexível classe 5
núcleos não.:
4 a 61
Tamanho:
0.5mm2 a 10mm2
Tipo stranded:
Pacote encalhado
cor:
Preto ou cinza
Destacar:

multicore power cable

,

multi core electrical cable

Payment & Shipping Terms
Quantidade de ordem mínima
1000M
Preço
USD 0.4 To 10.5 per Meter
Detalhes da embalagem
100/200 de medidor por Rolls ou cilindros de aço de madeira
Tempo de entrega
10-15 dias
Habilidade da fonte
8KM pelo dia
Descrição do produto

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2



Construction:



Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place





Specifications:



Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Overall Diameter Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km
min max
4x0.5 0.6 1.2 7.3 9.2 0.013 39
4x0.75 0.6 1.2 7.6 9.6 0.011 26
4x1.0 0.6 1.2 8 10 0.01 19.5
4x1.5 0.7 1.2 9 11.3 0.01 13.3
4x2.5 0.8 1.2 10.5 13.1 0.009 7.98
5x0.75 0.6 1.2 7.9 9.9 0.013 26
5x1.0 0.6 1.2 8.3 10.3 0.011 19.5
5x1.5 0.7 1.2 9.8 12.2 0.01 13.3
5x2.5 0.8 1.5 11.5 14.3 0.009 7.98
7x0.5 0.6 1.2 8.5 10.6 0.013 39
7x0.75 0.6 1.2 8.9 11.1 0.011 26
7x1.0 0.6 1.2 9.3 11.7 0.01 19.5
7x1.5 0.7 1.2 10.6 13.2 0.01 13.3
7x2.5 0.8 1.5 13.1 16.2 0.009 7.98
