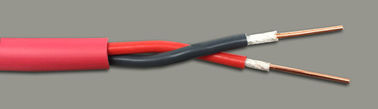

800 X 600 2.5mm2 fire-resistant cable with inorganic mineral synthetic mica tape
Fire Resistant Cable Constructions
1. Conductor: Plain circular stranded copper conductor,IEC 60228 Class 1,2
2. Insulation:Inorganic mineral synthetic mica tape,wrapped
3. Metallic Sheath:Aluminum sleeve,isolated
4. Insualtion Color code:PE extruded
5. Fire resistant layer:Inorganic mineral synthetic material,filled
6. Wrapping layer:Ceramic silicone rubber composite tape,wrapped
7. Out covering: PVC or LSZH,extruded
Fire Resistant Cable Applications
The product is used in public service,high temperature situation,potentially explosive area,hygiene situation,general installation.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Test Method for Fire resistance
| Test Item |
BS6387-2013 |
GB/T19216 |
IEC60331 |
| Refractory Test |
A Class 650ºC 3 hours
B Class 750ºC 3 hours
C Class 950ºC 3 hours
S Class 950ºC 20Mins |
B Class 750ºC-800ºC 90Mins |
750ºC 3Hours |
| Spray Test |
W Class 650ºC 15Mins |
N/A |
|
| Impact Test |
X Class 650ºC 15Mins
Y Class 750ºC 15Mins
Z Class 950ºC 15Mins |
N/A |
|
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
