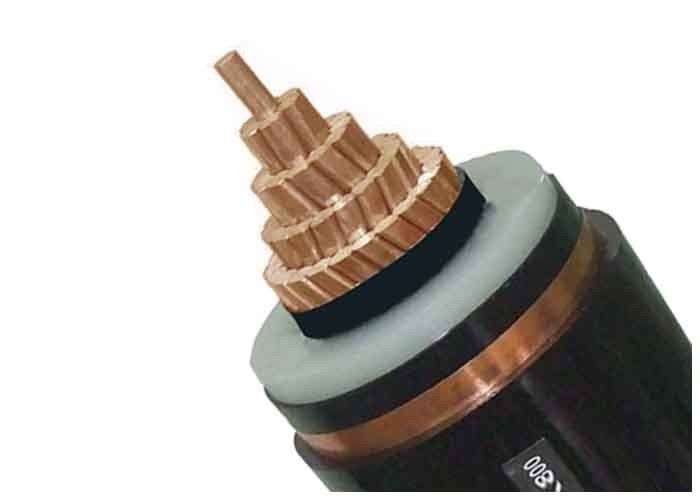

BS6622 Standard CU/XLPE/CTS//PVC 6.36/11kV Single Core Power Cable

MOQ: 200 m
preço: USD 1-299 Per Meter
Embalagem padrão: cilindro Ferro-de madeira ou cilindro de madeira inteiro
Período de entrega: 8-15 dias
Método de pagamento: L / C, T / T
Capacidade de abastecimento: 100KM POR o MÊS
Informações
Descrição do produto
Informações pormenorizadas
Lugar de origem
China
Marca
QINGDAO YICABLE CABLE
Certificação
CE/IEC/KEMA/VDE
Material do condutor::
Cobre
Flexibilidade do condutor::
Classe encalhada 2
Material da tela:
composto decondução
Isolação::
XLPE (produto químico)
Bainha exterior::
PVC
Raio de curvatura::
15 x Ø
Destacar:

xlpe electrical cable

,

cross linked polyethylene cable

Descrição do produto

BS6622 Standard CU/XLPE/CTS//PVC 6.36/11kV Single Core Power Cable

Application :PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 35kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.
1.The long-term permissible operation temperature of the conductor shall not be higher than 70ºC.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160ºC.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0ºC.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents,and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.


Main Technical Quota
1.DC resistance: conductor resistance of finished cable at 20'C per kilometer is not more than the following values.

Nominal Section
Area(mm 2 )		1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Copper Core12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221
Aluminum Core18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367


2.Voltage Test and Partial Discharge Test

Rate
Voltage Uo(kv)
Item
0.6/11.8/33.6/66/6
6/10		8.7/10
8.7/15		12/2018/20
18/30		21/3526/35
VoltageTest Voltage3.56.512.52130.5426373.591
Test Time555555555
Partial Discharge TestTest Voltage--6.210.415.120.831.136.345
Discharge Capacity--10101010101010


Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

BS6622 Standard CU/XLPE/CTS//PVC 6.36/11kV Single Core Power Cable 0
