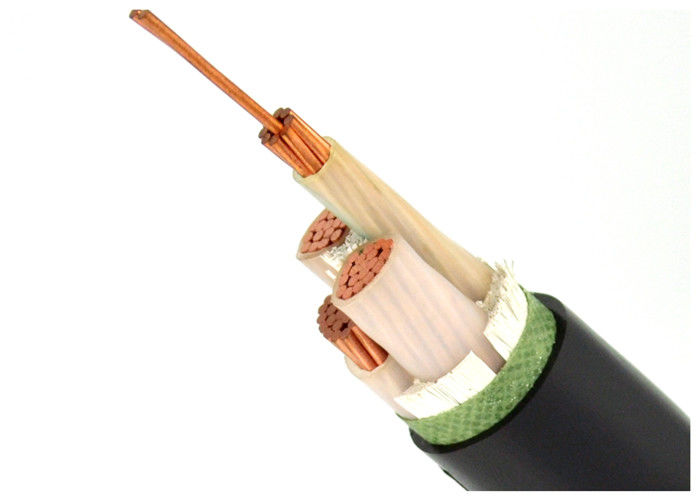

XLPE Insulated Cable

MOQ:	500m
preço:	USD 0.16-2.88/M
Embalagem padrão:	Cilindro de madeira
Período de entrega:	7 dias
Método de pagamento:	L / C, T / T
Capacidade de abastecimento:	86932KM/Week

Informações

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

QINGDAO YICABLE CABLE

Certificação

CE/KEMA/TUV/ISO

condutor:

cobre encalhado

Isolamento:

XLPE

Cor da isolação:

Brown, azul, verde, amarelo/verde

Nosso revestimento:

PVC

Tensão nominal:

600/1000V

Amostra:

Disponível

Garantia:

2 anos

Destacar:

xlpe power cable

cross linked polyethylene cable

Descrição do produto

U/G XLPE Insulated Power Cable 4x185SQMM Used in Power Plant IEC 60502

Specifications:

1. U0/U: 0.6/1kV

2. Standard: IEC60502, BS7870, GB/T12706

3. Max. working temperature: 90 °C , can be 110 °C as requirement

4. Conductor: Class 1/2 annealed bare copper/aluminum solid or strands

5. Insulation: XLPE/PVC

6. Armored: none

7. Sheath: PVC

8. Cross section area: 1.5~630mm2

9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E

10. Packing:Wooden drum or as requirement

11. Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB

12. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

Applications

Electric Cable YJV 3+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.

YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

Standards

International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST₂ to IEC 60502, black

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Specifications

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500

pvc insulation
Cu Core	Al Core
VV(VY);PVC(PE)sheathed power cable	VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable	VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable	VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
